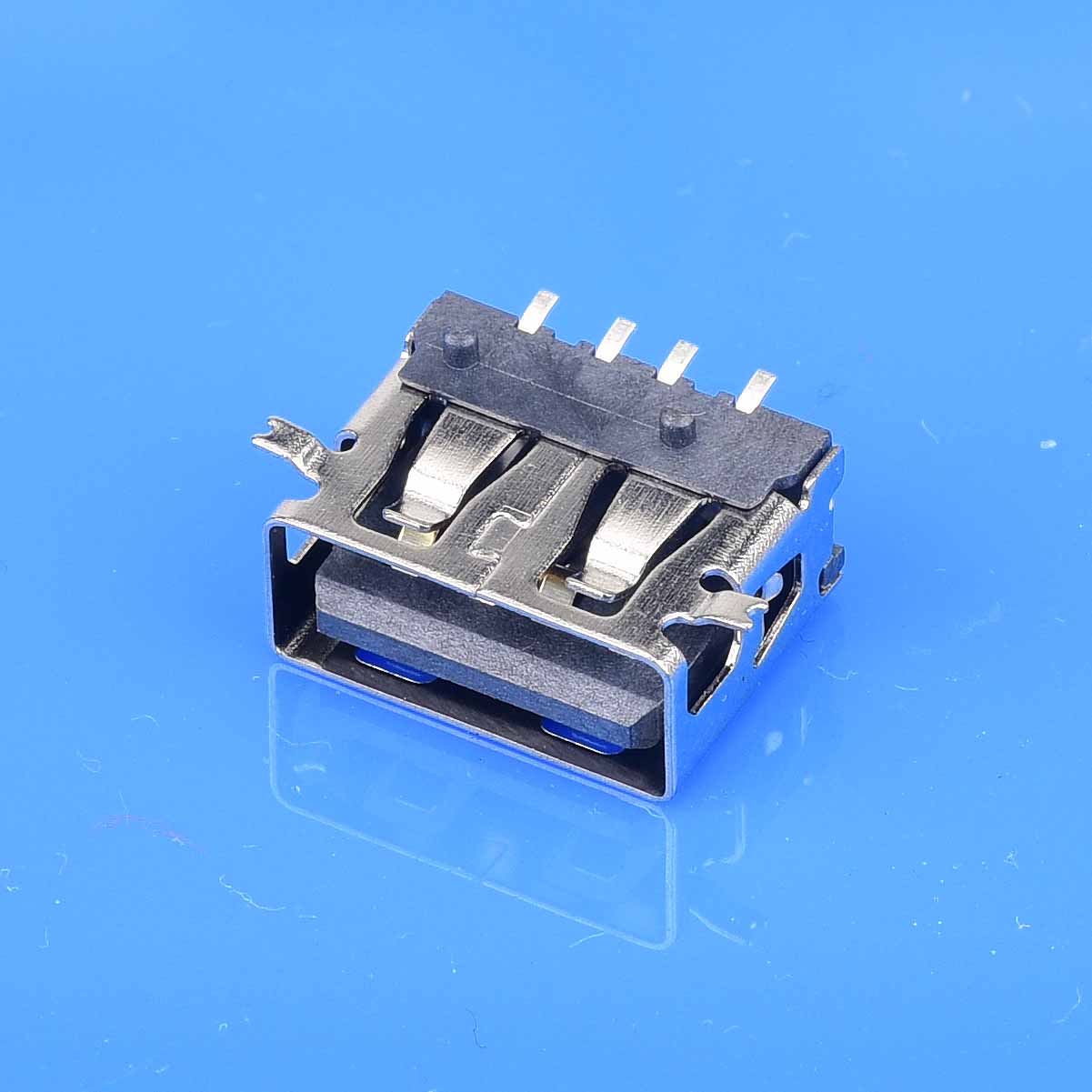

Part Info U2-JS-370403054-R (White) U2-JS-370403060-R (Black) U2-JS-370403061-R (Gray)
| Electrical Characteristics | Rated Voltage | 30VAC RMS | ||
| Rated Current | 3.0 A | |||
| Contact Resistance | 30mΩ Max | |||
Withstand Voltage | 500V AC for one minute at sea level | |||
| Mechanical Characteristics | Mating Force | 35N Max | ||
| Unmating Force | 10N Min | |||
| Material Info | Shell | Stainless Steel T=0.30mm | ||
Housing Contact Mylar Contact Plating Shell Plating | High Temp: LCP Copper Alloy T=0.20mm Polyimide flim, brown 3μ" Au Plating on contact area and matte tin plated on soldertail, all over nickel plating Nickel plating | |||
| Environmental Info | Operating Temperature Range (°C) Salt Spray | -40℃~85℃ 48H at 35% DC with 5% salt solution concentration | ||
