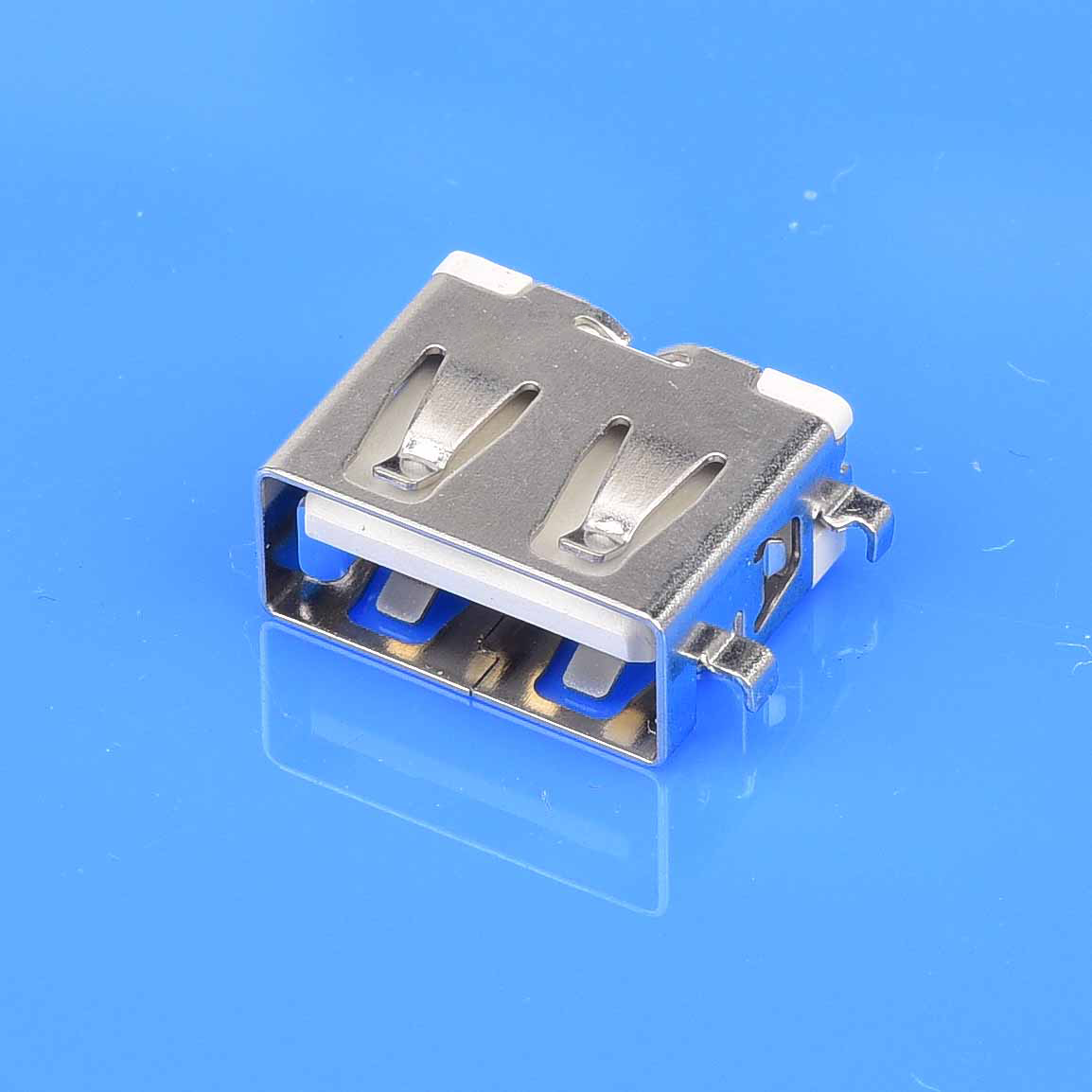

Part Info U2-JS-370403119-R (White) U2-JS-370403129-R (Black) U2-JS-370403130-R (Blue)
| Electrical Characteristics | Rated Voltage | 30VAC RMS | ||
| Rated Current | 3.0 A | |||
| Contact Resistance | 30mΩ Max | |||
Withstand Voltage | 500V AC for one minute at sea level | |||
| Mechanical Characteristics | Mating Force | 20N Max | ||
| Unmating Force | Before life test 10-22N, after life test 8-22N | |||
| Material Info | Shell | Stainless Steel T=0.30mm | ||
Housing Contact Contact Plating Shell Plating | LCP(White/Black)/PA10T(Blue) gold plating 3μ” Copper Alloy T=0.20mm 3μ" Au Plating on contact area and matte tin plated on soldertail all over nickel plating Nickel Plating | |||
| Environmental Info | Operating Temperature Range (°C) Salt Spray | -40℃~85℃ 48H at 35% DC with 5% salt solution concentration | ||
