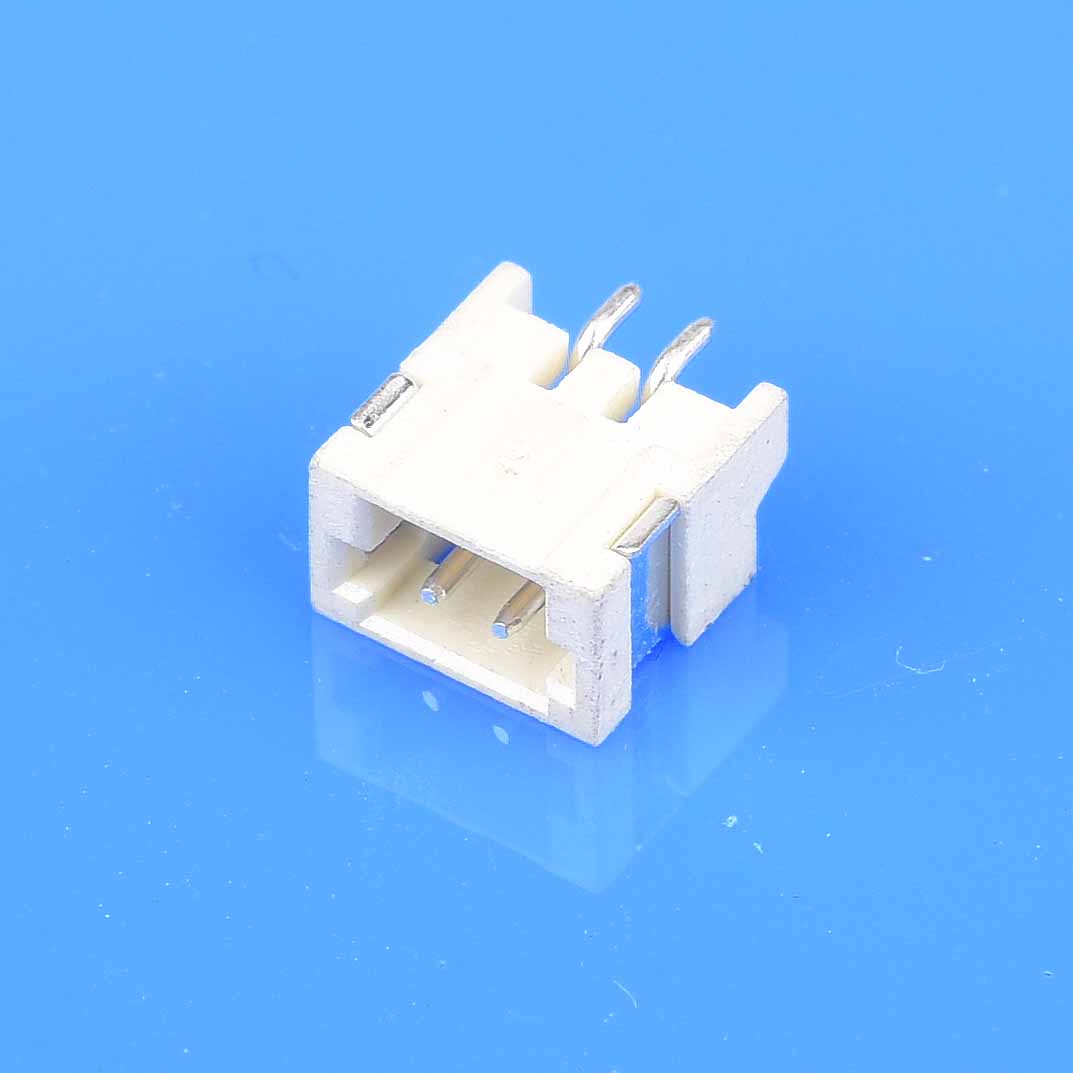

| Product Type Features | Category | Wire to Board | ||
| Assembly Type | Wafer | |||
| Pitch (mm) | 1.5mm | |||
| Product Series | TJ-JS-27xxSN719-R | |||
| Electrical characteristics | Rated Voltage (V AC/DC) | 125 | ||
| Rated Current (A AC/DC) | 1 | |||
| Contact Resistance | ≤20mΩ | |||
Insulation Resistance Withstand Voltage | ≥500MΩ 500V AC/Minut | |||
| Configuration Features | Number of Rows | 1 | ||
| Number of Positions | 2~20 | |||
| Shell characteristics | Color | Ivory | ||
Housing Material Contact Material | LCP, UL94V-0 Brass, tin plated | |||
| Environmental Info | Operating Temperature Range (°C) | -25℃~85℃ | ||
