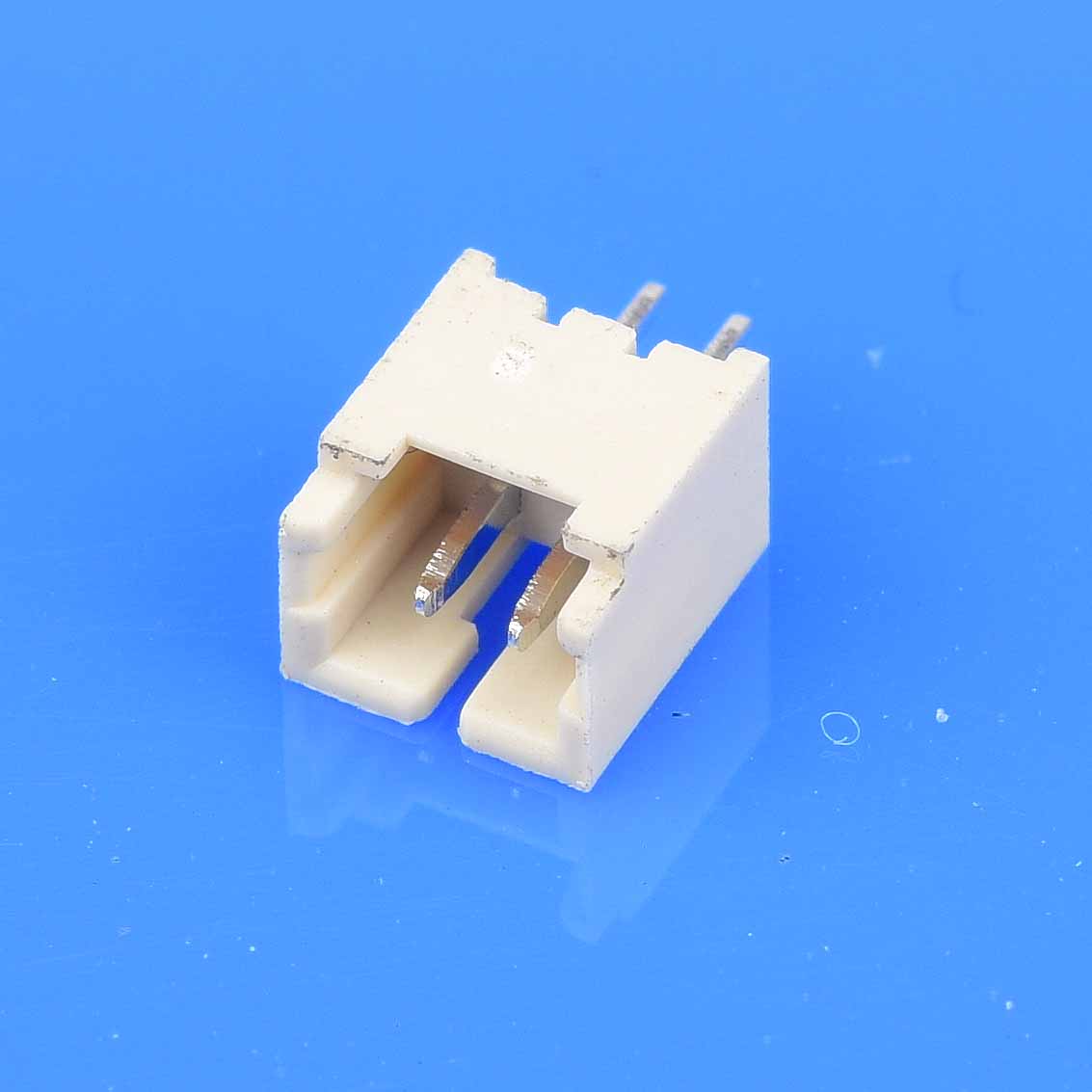

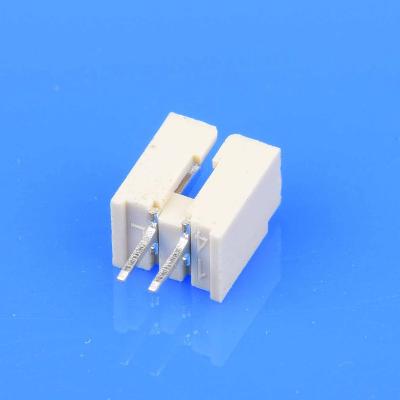

| Product Type Features | Category | Wire to Board | ||
| Assembly Type | Wafer | |||
| Pitch (mm) | 1.25mm | |||
| Product Series | TJ-JS-22XXSN992-R | |||
| Electrical characteristics | Rated Voltage (V AC/DC) | 200 | ||
| Rated Current (A AC/DC) | 1 | |||
| Contact Resistance | ≤30mΩ | |||
Insulation Resistance Withstand Voltage | ≥1000MΩ 500V AC/Minute | |||
| Configuration Features | Number of Rows | 1 | ||
| Number of Positions | 2~20 | |||
| Shell characteristics | Color | White | ||
Housing Material Contact Material | PA66, UL94V-0 Brass, Matte Sn-plated | |||
| Environmental Info | Operating Temperature Range (°C) | -20℃~85℃ | ||
