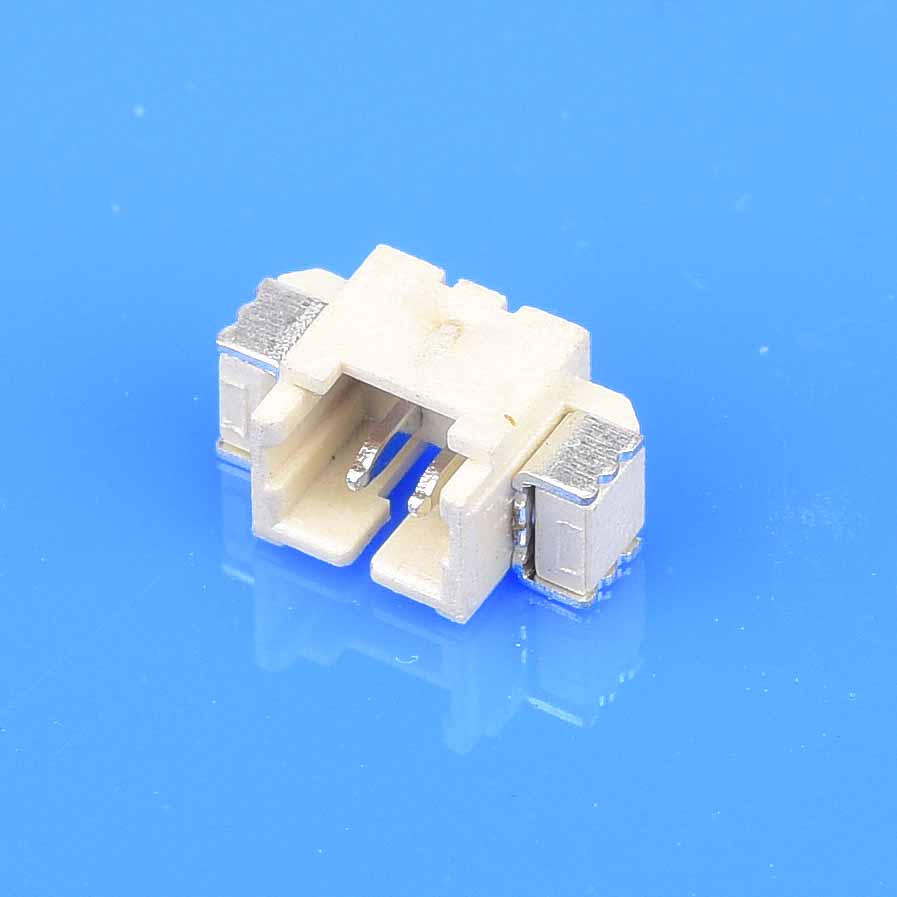

TJ-JS-2202SN985-R
(1.25mm)
pdf name
Product Details
Approvals
Drawings
3D view and download


Product Type FeaturesCategoryWire to Board

Assembly TypeWafer

Pitch (mm)1.25mm

Product SeriesTJ-JS-22xxSN985-R

Electrical characteristicsRated Voltage (V AC/DC)200

Rated Current (A AC/DC)1

Contact Resistance≤30mΩ

Insulation Resistance

Withstand Voltage

≥1000MΩ

1000V AC/Minute


Configuration FeaturesNumber of Rows 1

Number of Positions 2~16

Shell characteristicsColor Ivory

Housing Material

Contact Material

LCP, UL94V-0

Brass, Sn/Gold/Matte Sn-plated


Environmental Info

Operating Temperature Range (°C)

-20℃~85
