| Material Info. | |
| Case | PA66 UL94 V-0 |
| Conductor | Brass, Tin plated |
| - | |
| - |
| Electrical Data | ||
| Item | IEC | UL |
| Wire Range | - | - |
| Rated Voltage | 250V | 300V |
| Current Rating | 15A | 10A |
| Withstand Voltage | 2000V/1min | 1600V/1min |
| Operation Temperature | -33°C ~+105°C |
UR

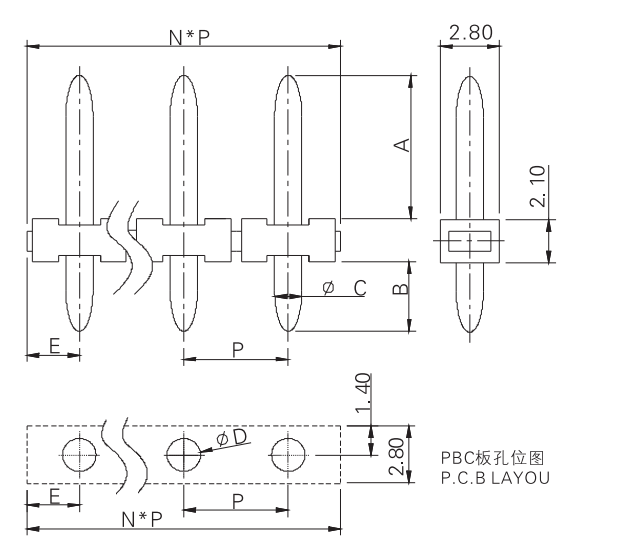

P=3.50 C=1.00 D=1.30 E=1.75 | Product Model | Dim A | Dim B |
| CA350-19 | 14.60 | 3.40 | |
| CA350-22 | 14.50 | 3.50 | |
| CA350-23 | 9.00 | 9.00 | |
| CA350-37 | 11.00 | 7.00 | |
P=5.00 C=1.30 D=1.60E=2.50 | Product Model | Dim A | Dim B |
| CA350-12 | 7.00 | 3.40 | |
| CA350-12X | 6.40 | 4.00 | |
| CA350-12T | 7.00 | 2.50 | |
| CA350-18 | 14.50 | 3.40 | |
| CA350-21 | 10.65 | 3.50 | |
| CA350-31 | 9.90 | 3.00 | |
| CA350-32 | 13.40 | 7.00 |
