| Material Info. | |
| Case | PA66 UL94 V-0 |
| Conductor | Brass, Tin plated |
| Screw | C1018 steel, Zinc plated - M2.0 |
| Spring | SUS 301 |
| Electrical Data | ||
| Item | IEC | UL |
| Wire Range | 0.5 - 1.5 mm2 | 24-16 AWG |
| Rated Voltage | 125V | 300V |
| Current Rating | 10A | 8A |
| Withstand Voltage | 1250V/1min | 1600V/1min |
| Operation Temperature | -33°C ~+105°C |
CQC, UR, CB

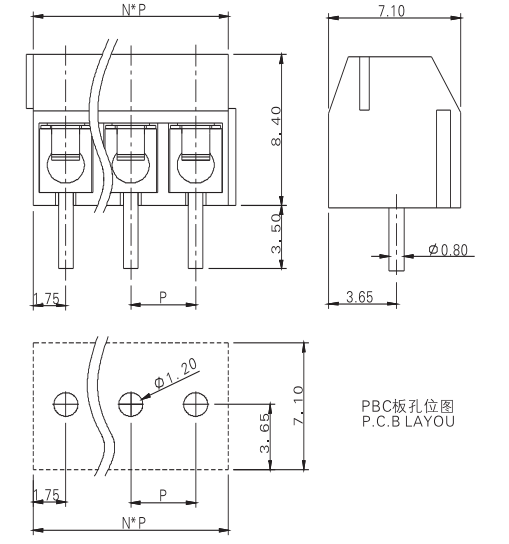

P=3.50mm L=P*pole
