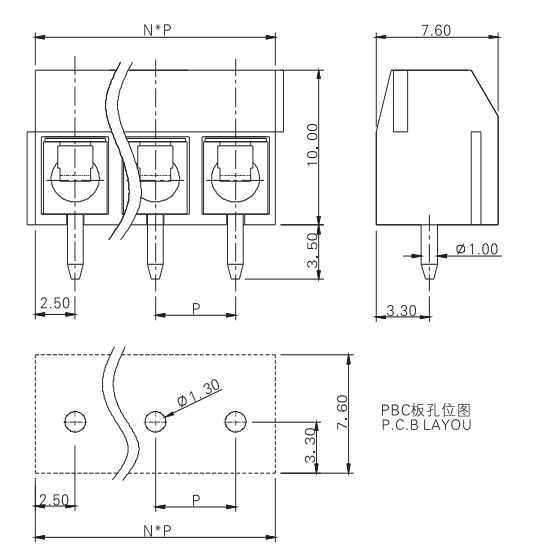

P=5.0mm L=P*pole
| Material Info. | |
| Case | PA66 UL94 V-0 |
| Conductor | Brass, Tin plated |
| Screw | C1018 steel, Zinc plated - M2.5 |
| Spring | SUS 301 |
| Electrical Data | ||
| Item | IEC | UL |
| Wire Range | 0.5 - 2.5 mm2 | 24-14 AWG |
| Rated Voltage | 250V | 300V |
| Current Rating | 16A | 15A |
| Withstand Voltage | 2000V/1min | 1600V/1min |
| Operation Temperature | -33°C ~+105°C |
CQC, UR, CB, DVE, CE
P=5.0mm L=P*pole
